Your Position: Home > Immune Checkpoint Proteins > TIGIT > Biotinylated Human TIGIT Protein, Fc Tag, Avi Tag

Biotinylated Human TIGIT Protein, Fc Tag, Avi Tag (Avitag™)

  • Synonym
    TIGIT,VSIG9,VSTM3
  • Source
    Biotinylated Human TIGIT, Fc Tag, Avi Tag (TIT-H82F1) is expressed from human 293 cells (HEK293). It contains AA Met 22 - Pro 141 (Accession # Q495A1-1).
    Predicted N-terminus: Met 22

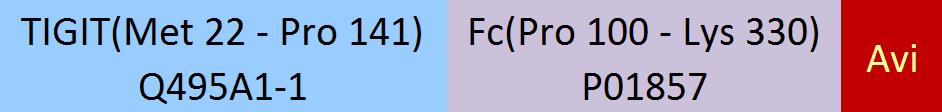

  • Molecular Characterization
    TIGIT(Met 22 - Pro 141) Q495A1-1

    This protein carries a human IgG1 Fc tag at the C-terminus, followed by a Avi tag (Avitag™).

    The protein has a calculated MW of 41.3 kDa. As a result of glycosylation, the protein migrates as 45-55 kDa under reducing (R) condition, and 85-115 kDa under non-reducing (NR) condition (SDS-PAGE).

  • Biotinylation
    Biotinylation of this product is performed using Avitag™ technology. Briefly, the single lysine residue in the Avitag is enzymatically labeled with biotin.
  • Biotin:Protein Ratio
    The biotin to protein ratio is 0.5-1 as determined by the HABA assay.
  • Endotoxin
    Less than 1.0 EU per μg by the LAL method.
  • Purity

    >95% as determined by SDS-PAGE.

  • Formulation

    Lyophilized from 0.22 μm filtered solution in 50 mM Tris, 100 mM Glycine, pH7.5. Normally trehalose is added as protectant before lyophilization.

    Contact us for customized product form or formulation.

  • Reconstitution

    Please see Certificate of Analysis for specific instructions.

    For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.

  • Storage

    For long term storage, the product should be stored at lyophilized state at -20°C or lower.

    Please avoid repeated freeze-thaw cycles.

    No activity loss was observed after storage at:

    1. 4-8°C for 12 months in lyophilized state;

    2. -70°C for 3 months under sterile conditions after reconstitution.

SDS-PAGE
Biotinylated Human TIGIT, Fc Tag, Avi Tag (Cat. No. TIT-H82F1) SDS-PAGE gel

Biotinylated Human TIGIT, Fc Tag, Avi Tag on SDS-PAGE under reducing (R) and no-reducing (NR) conditions. The gel was stained overnight with Coomassie Blue. The purity of the protein is greater than 95%.

Bioactivity-ELISA
Biotinylated Human TIGIT, Fc Tag, Avi TagBiotinylated Human TIGIT, Fc Tag, Avi Tag (Cat. No. TIT-H82F1) ELISA bioactivity

Immobilized Human CD155, Fc Tag (Cat. No. CD5-H5251) at 5 μg/mL (100 μL/well) can bind Biotinylated Human TIGIT, Fc Tag, Avi Tag (Cat. No. TIT-H82F1) with a linear range of 10-156 ng/mL (QC tested).

FACS assay shows that recombinant Biotinylated FACS

FACS assay shows Biotinylated Human TIGIT Protein, Fc Tag, Avi Tag (Cat. No. TIT-H82F1) can bind to 293T cell overexpressing human CD155. The concentration of TIGIT is 0.03 μg/ml (Routinely tested).

  • Background
    T-cell immunoreceptor with Ig and ITIM domains (TIGIT) is also known as V-set and immunoglobulin domain-containing protein 9 (VSIG9), V-set and transmembrane domain-containing protein 3 (VSTM3),which belongs to single-pass type I membrane protein containing an immunoglobulin variable domain, a transmembrane domain and an immunoreceptor tyrosine-based inhibitory motif (ITIM). TIGIT is expressed at low levels on peripheral memory and regulatory CD4+ T-cells and NK cells and is up-regulated following activation of these cells (at protein level). TIGIT binds with high affinity to the poliovirus receptor (PVR) which causes increased secretion of IL10 and decreased secretion of IL12B and suppresses T-cell activation by promoting the generation of mature immunoregulatory dendritic cells.
  • References
  • Limited Use License

    The Biotin AviTag technology is covered by U.S. Pat. No: 5,874,239 and includes any and all materials, methods, kits and related derivatives claimed by this patent. The purchase of the Acrobiosystems’s Avitag™ proteins confers to the purchaser the limited right to use the Avitag™ technology for non-commercial, or research use, or for purposes of evaluating the Avitag™ technology.

    Commercial use of the Avitag™ technology to manufacture a commercial product, or use of the Avitag™ technology to facilitate or advance research which will be applied to the development of a commercial product requires a license from Avidity, LLC. Examples of Commercial use include, but are not limited to biosensors, diagnostics, therapeutic applications, proximity assays, and drug screening assays.
