Product Details
Synonyms
RP1-261G23.1, MGC70609, MVCD1, VEGFA, VPF
Source
Biotinylated Human VEGF165, His,Avitag (VE5-H82Q0) is expressed from human 293 cells (HEK293). It contains AA Ala 27 - Arg 191 (Accession # P15692-4). In the region Ala 27 - Arg 191, the amino acid sequences of VEGF165 from Human, Cynomolgus and Rhesus macaque are identical.
Predicted N-terminus: His
Request for sequenceMolecular Characterization
Other Tags and Version Biotin & Other Labeled Version

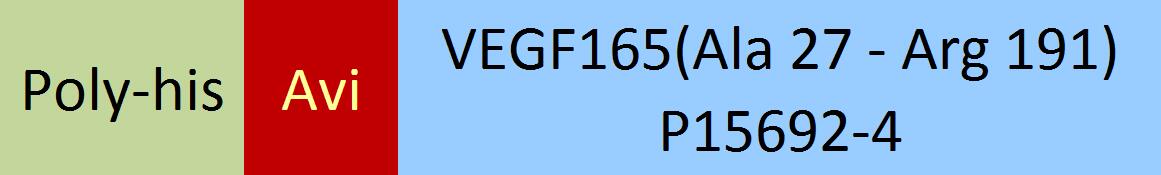

This protein carries a polyhistidine tag at the N-terminus, followed by an Avi tag (Avitag™).
The protein has a calculated MW of 22.4 kDa (monomer). The protein migrates as 23-28 kDa (monomer) under reducing (R) condition, and 40-55 kDa (homodimer) when calibrated against Star Ribbon Pre-stained Protein Marker under non-reducing (NR) condition (SDS-PAGE) due to glycosylation.
Labeling
Biotinylation of this product is performed using Avitag™ technology. Briefly, the single lysine residue in the Avitag is enzymatically labeled with biotin.
Protein Ratio
Passed as determined by the HABA assay / binding ELISA.
Purity
>95% as determined by SDS-PAGE.
>95% as determined by SEC-HPLC.
Formulation
Lyophilized from 0.22 μm filtered solution in PBS, pH7.4 with trehalose as protectant.
Contact us for customized product form or formulation.
Reconstitution
Please see Certificate of Analysis for specific instructions.
For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.
Storage
For long term storage, the product should be stored at lyophilized state at -20°C or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
- -20°C to -70°C for 12 months in lyophilized state;
- -70°C for 12 months under sterile conditions after reconstitution.
ACRO Quality Management System
Customers Also Viewed
Performance Data
SDS-PAGE
Biotinylated Human VEGF165, His,Avitag on SDS-PAGE under reducing (R) and non-reducing (NR) conditions. The gel was stained with Coomassie Blue. The purity of the protein is greater than 95% (With Star Ribbon Pre-stained Protein Marker).
SEC-HPLC

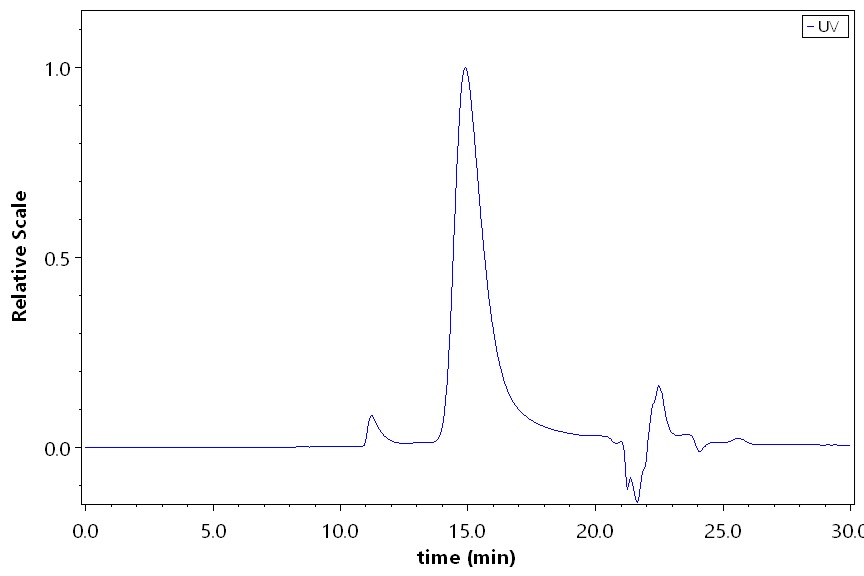

The purity of Biotinylated Human VEGF165, His,Avitag (Cat. No. VE5-H82Q0) was greater than 95% as determined by SEC-HPLC.
Bioactivity-ELISA
Immobilized Human VEGF R2, His Tag (Cat. No. KDR-H5227) at 2 μg/mL (100 μL/well) can bind Biotinylated Human VEGF165, His,Avitag (Cat. No. VE5-H82Q0) with a linear range of 2-39 ng/mL (QC tested).
Protocol
Immobilized Anti-VEGF MAb, Human IgG1 (Avastin) at 5 μg/mL (100 μL/well) can bind Biotinylated Human VEGF165, His,Avitag (Cat. No. VE5-H82Q0) with a linear range of 1-15.6 ng/mL (Routinely tested).
Protocol

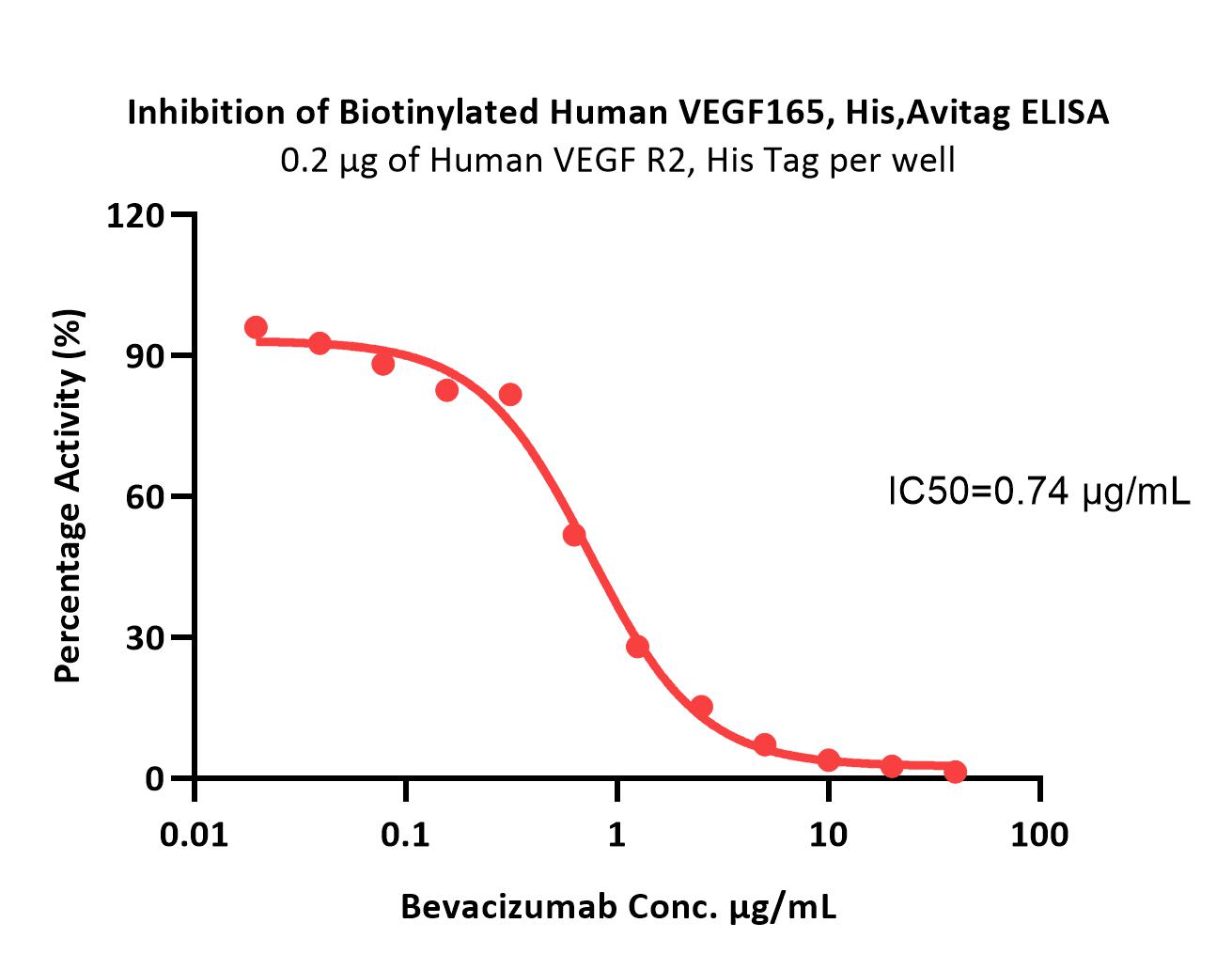

Immobilized Human VEGF R2, His Tag (Cat. No. KDR-H5227) at 2 μg/mL (100 μL/well), can bind pre-mixed increasing concentrations of Bevacizumab and 0.05 μg/mL (100 μL/well) Biotinylated Human VEGF165, His,Avitag (Cat. No. VE5-H82Q0) with a half maximal inhibitory concentration (IC50) of 0.74 μg/mL (Routinely tested).
Protocol

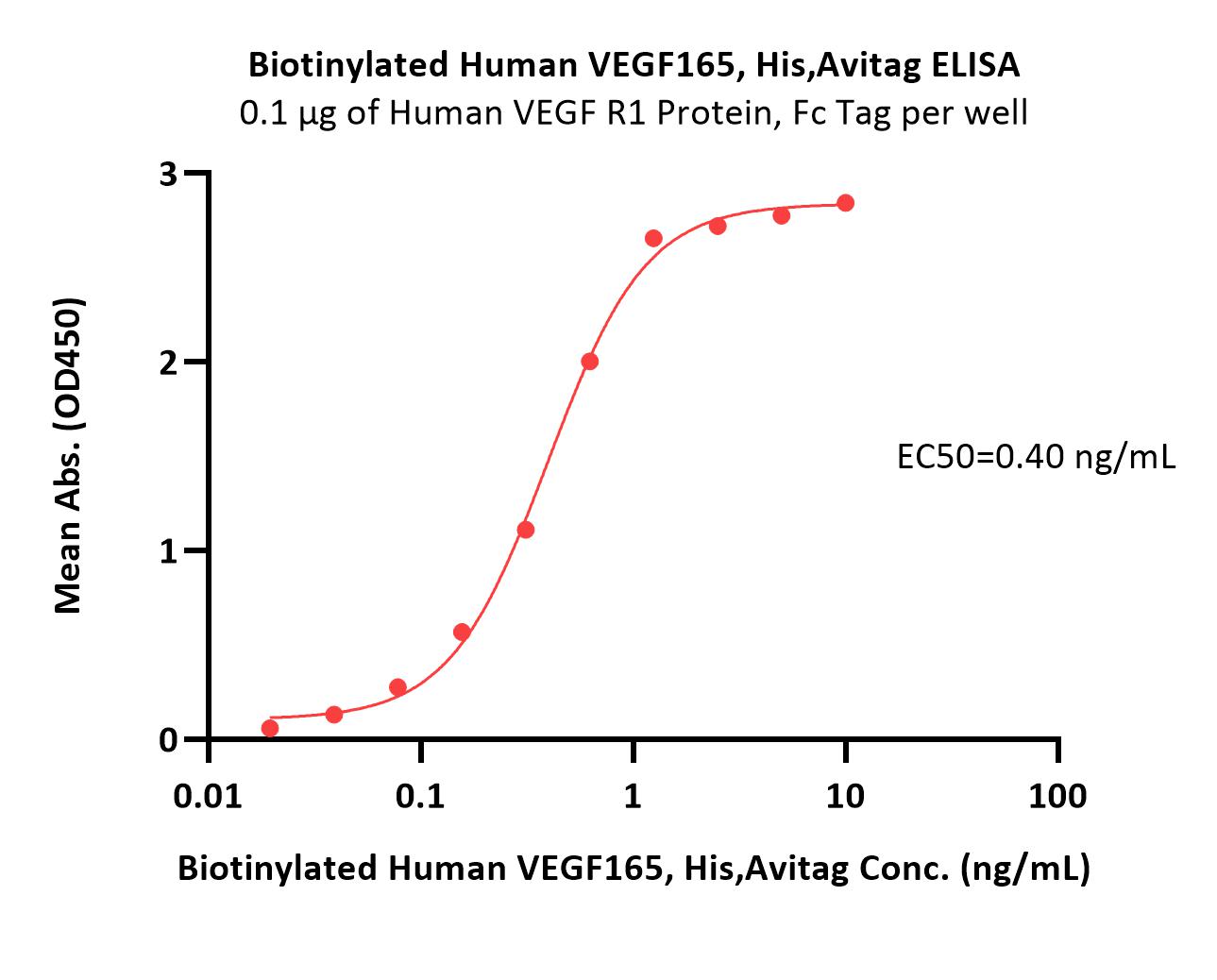

Immobilized Human VEGF R1 Protein, Fc Tag (Cat. No. VE1-H5253) at 1 μg/mL (100 μL/well) can bind Biotinylated Human VEGF165, His,Avitag (Cat. No. VE5-H82Q0) with a linear range of 0.02-1 ng/mL (Routinely tested).
Protocol
Bioactivity-TR-FRET

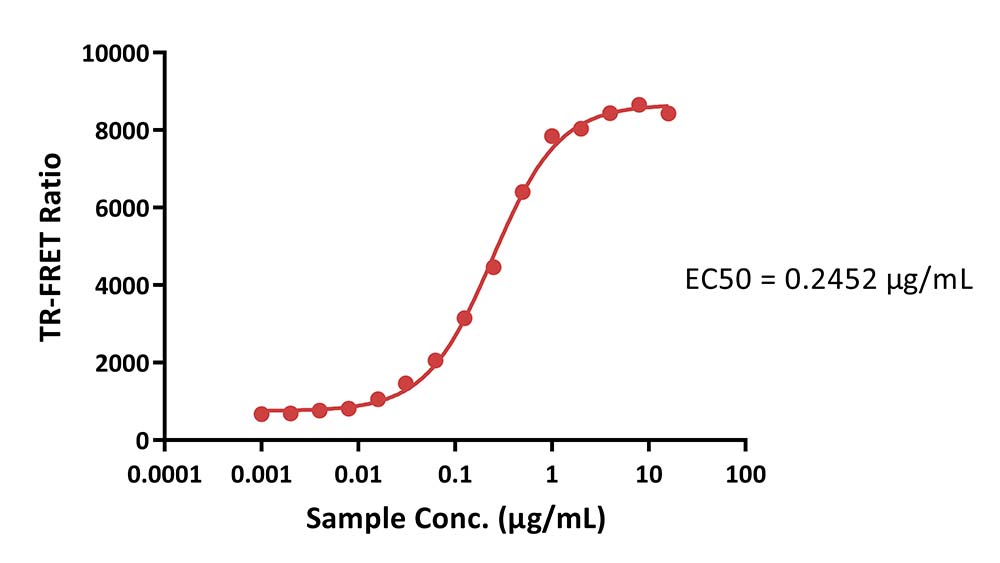

In this TR-FRET assay, Streptavidin Protein Europium chelate (for TR-FRET) (Cat. No. FRT-TD09) is used as the Donor and Monoclonal Anti-Human IgG Antibody FA-Labeled (for TR-FRET) (Cat. No. FRT-TA02) is used as the Acceptor. Biotinylated Human VEGF165, His,Avitag (Cat. No. VE5-H82Q0), at 0.3 ng/well, can bind to the Ivonescimab with a linear detection range of 16-0.001 μg/mL (Routinely tested).
Bioactivity-SPR
Immobilized Biotinylated Human VEGF165, His,Avitag (Cat. No. VE5-H82Q0) on CM5 Chip via Streptavidin, can bind Avastin with an affinity constant of 0.417 nM as determined in SPR assay (Biacore T200) (Routinely tested).
Protocol
Bioactivity-BLI

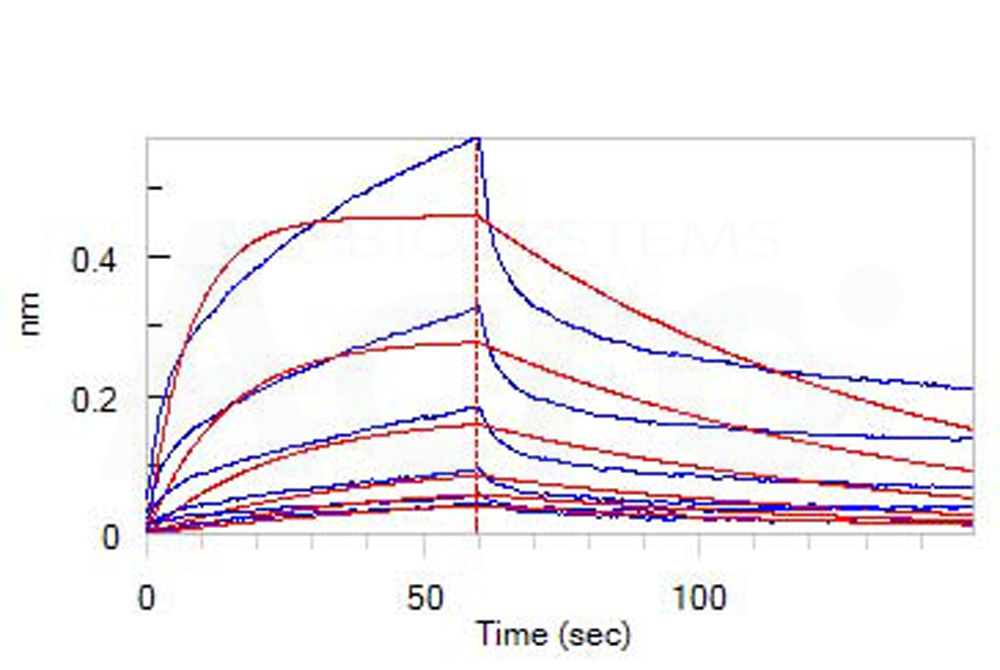

Loaded Biotinylated Human VEGF165, His,Avitag (Cat. No. VE5-H82Q0) on SA Biosensor, can bind Human Neuropilin-1, His Tag (Cat. No. NR1-H5228) with an affinity constant of 21.1 nM as determined in BLI assay (ForteBio Octet Red96e) (Routinely tested).
Protocol
Loaded Biotinylated Human VEGF165, His,Avitag (Cat. No. VE5-H82Q0) on SA Biosensor, can bind Human VEGF R1, His Tag with an affinity constant of 3.36 nM as determined in BLI assay (ForteBio Octet Red96e) (Routinely tested).
Protocol
