Product Details
Synonyms
IL-23 alpha & IL-12 beta
Source
Biotinylated Human IL-23 alpha&IL-12 beta Heterodimer Protein, His,Avitag&Tag Free (ILB-H82W6) is expressed from human 293 cells (HEK293). It contains AA Arg 20 - Pro 189 (IL23A) & Ile 23 - Ser 328 (IL12B) (Accession # Q9NPF7-1 (IL23A) & P29460-1 (IL12B)).
Predicted N-terminus: His (IL23A) & Ile 23 (IL12B)
Request for sequenceMolecular Characterization
Other Tags and Version Biotin & Other Labeled Version
Biotinylated Human IL-23A&IL-12B Heterodimer Protein, His,Avitag&Tag Free, produced by co-expression of IL23A and IL12B, has a calculated MW of 21.9 kDa (IL23A) & 34.7 kDa (IL12B). Subunit IL23A is fused with an Avi tag (Avitag™), followed by a polyhistidine tag at the N-terminus and subunit IL12B contains no tag. The protein migrates as 23-25 kDa (IL23A) & 37-39 kDa (IL12B) when calibrated against Star Ribbon Pre-stained Protein Marker under reducing (R) condition (SDS-PAGE) due to glycosylation.
The protein is designed as a heterodimer.
Labeling
Biotinylation of this product is performed using Avitag™ technology. Briefly, the single lysine residue in the Avitag is enzymatically labeled with biotin.
Protein Ratio
Passed as determined by the HABA assay / binding ELISA.
Purity
>95% as determined by SDS-PAGE.
Formulation
Lyophilized from 0.22 μm filtered solution in PBS, pH7.4 with trehalose as protectant.
Contact us for customized product form or formulation.
Reconstitution
Please see Certificate of Analysis for specific instructions.
For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.
Storage
For long term storage, the product should be stored at lyophilized state at -20°C or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
- -20°C to -70°C for 12 months in lyophilized state;
- -70°C for 3 months under sterile conditions after reconstitution.
ACRO Quality Management System
Customers Also Viewed
Performance Data
SDS-PAGE
Biotinylated Human IL-23 alpha&IL-12 beta Heterodimer Protein, His,Avitag&Tag Free on SDS-PAGE under reducing (R) condition. The gel was stained with Coomassie Blue. The purity of the protein is greater than 95% (With Star Ribbon Pre-stained Protein Marker).

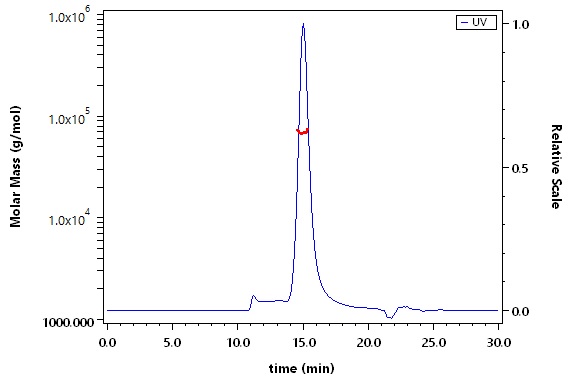

SEC-MALS
The purity of Biotinylated Human IL-23 alpha&IL-12 beta Heterodimer Protein, His,Avitag&Tag Free (Cat. No. ILB-H82W6) is more than 85% and the molecular weight of this protein is around 55-70 kDa verified by SEC-MALS.
Report
Bioactivity-ELISA
Immobilized Anti-p19 subunit of IL23 (Anti-IL23A) MAb, Human IgG1 at 2 μg/mL (100 μL/well) can bind Biotinylated Human IL-23A&IL-12B Heterodimer Protein, His,Avitag&Tag Free (Cat. No. ILB-H82W6) with a linear range of 1.2-19.5 ng/mL (QC tested).
Protocol
Immobilized Biotinylated Human IL-23A&IL-12B Heterodimer Protein, His,Avitag&Tag Free (Cat. No. ILB-H82W6) at 2 μg/mL (100 μL/well) on streptavidin precoated (0.2 μg/well) plate, can bind Human IL-23 R, Fc Tag (Cat. No. ILR-H5254) with a linear range of 0.4-6 ng/mL (Routinely tested).
Protocol

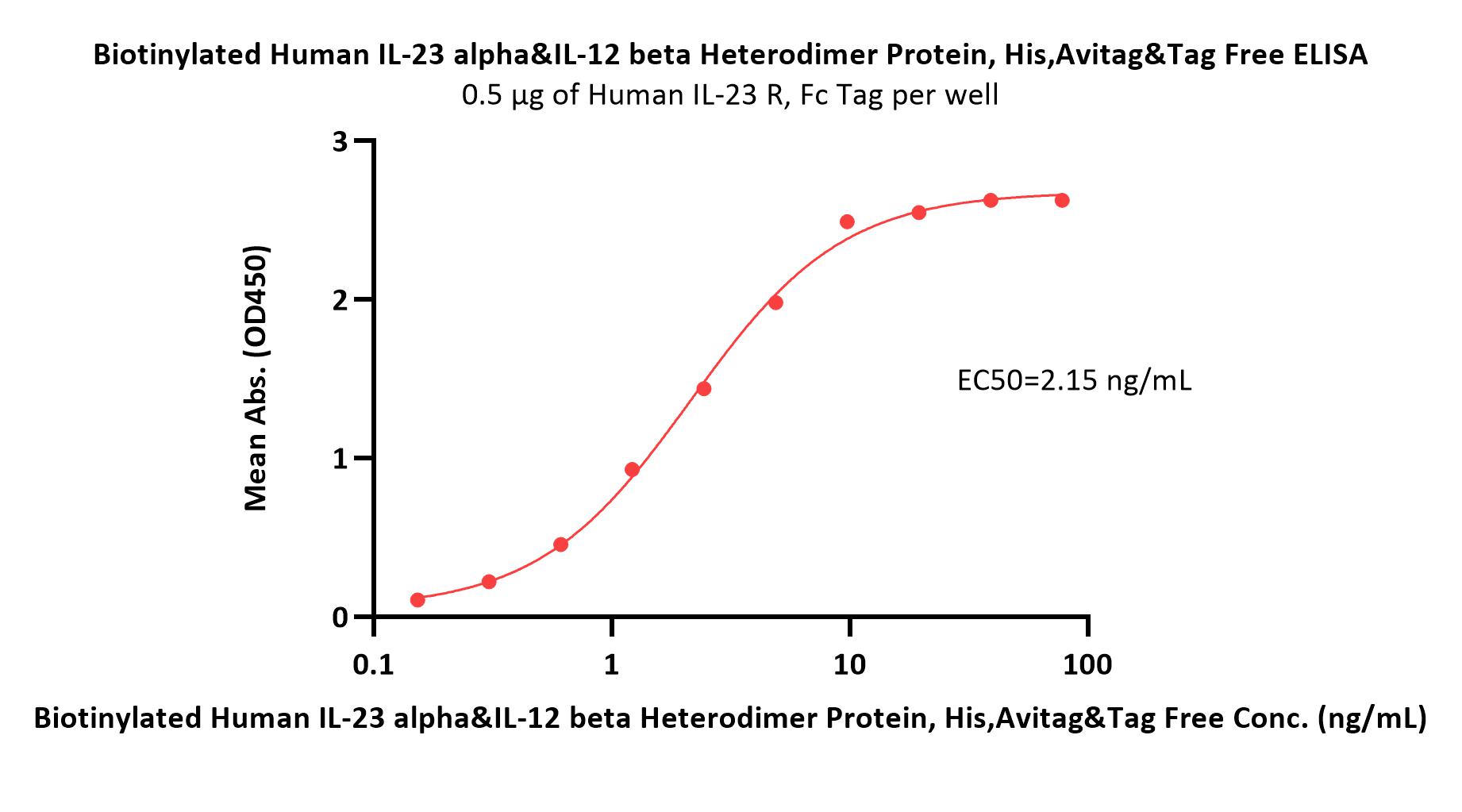

Immobilized Human IL-23 R, Fc Tag (Cat. No. ILR-H5254) at 5 μg/mL (100 μL/well) can bind Biotinylated Human IL-23 alpha&IL-12 beta Heterodimer Protein, His,Avitag&Tag Free (Cat. No. ILB-H82W6) with a linear range of 0.2-10 ng/mL (Routinely tested).
Protocol
Bioactivity-SPR
Captured Biotinylated Human IL-23A&IL-12B Heterodimer Protein, His,Avitag&Tag Free (Cat. No. ILB-H82W6) on Biotin CAP – Series S sensor Chip can bind Human IL-23 R, His Tag (Cat. No. ILR-H52H4) affinity constant of 4.77 nM as determined in a SPR assay (Biacore T200) (Routinely tested).
Protocol

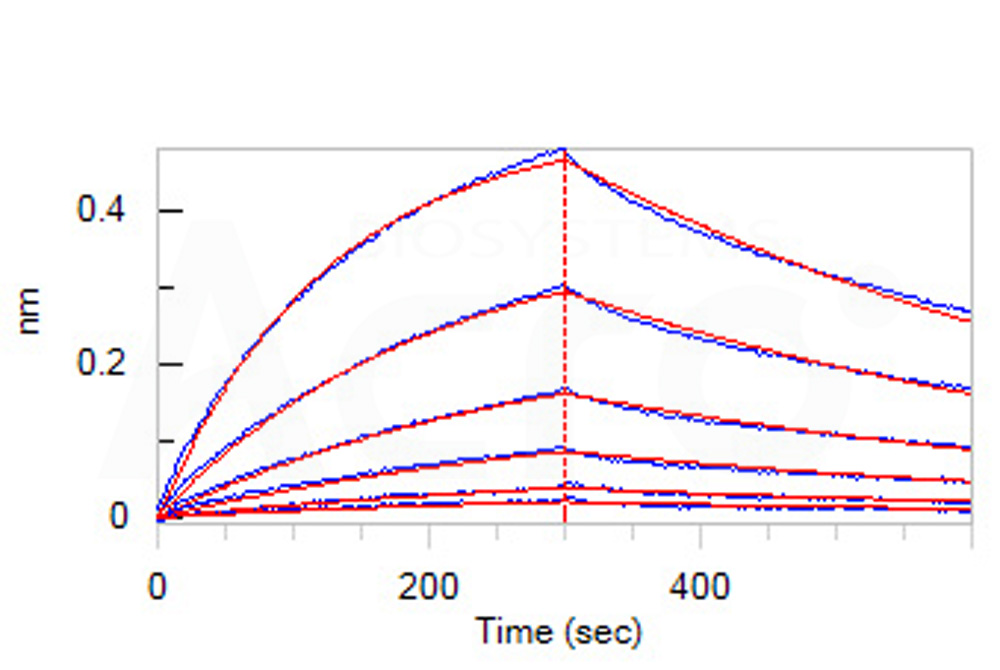

Bioactivity-BLI
Loaded Biotinylated Human IL-23A&IL-12B Heterodimer Protein, His,Avitag&Tag Free (Cat. No. ILB-H82W6) on SA Biosensor, can bind Human IL-23 R, His Tag (Cat. No. ILR-H52H4) with an affinity constant of 33.2 nM as determined in BLI assay (ForteBio Octet Red96e) (Routinely tested).
Protocol
Bioactivity-CELL BASE

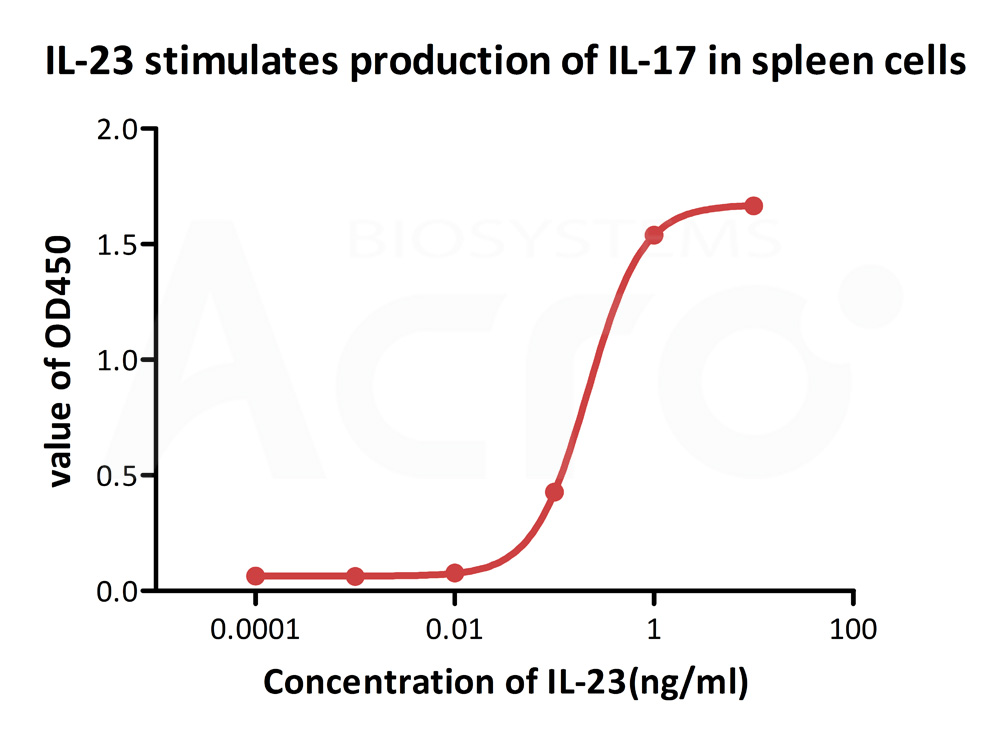

Biotinylated Human IL-23A&IL-12B Heterodimer Protein, His,Avitag&Tag Free (Cat. No. ILB-H82W6) stimulates secretion of IL-17 by mousespleen cells. The ED50 for this effect is 0.191-0.2173 ng/mL (Routinely tested).
Protocol

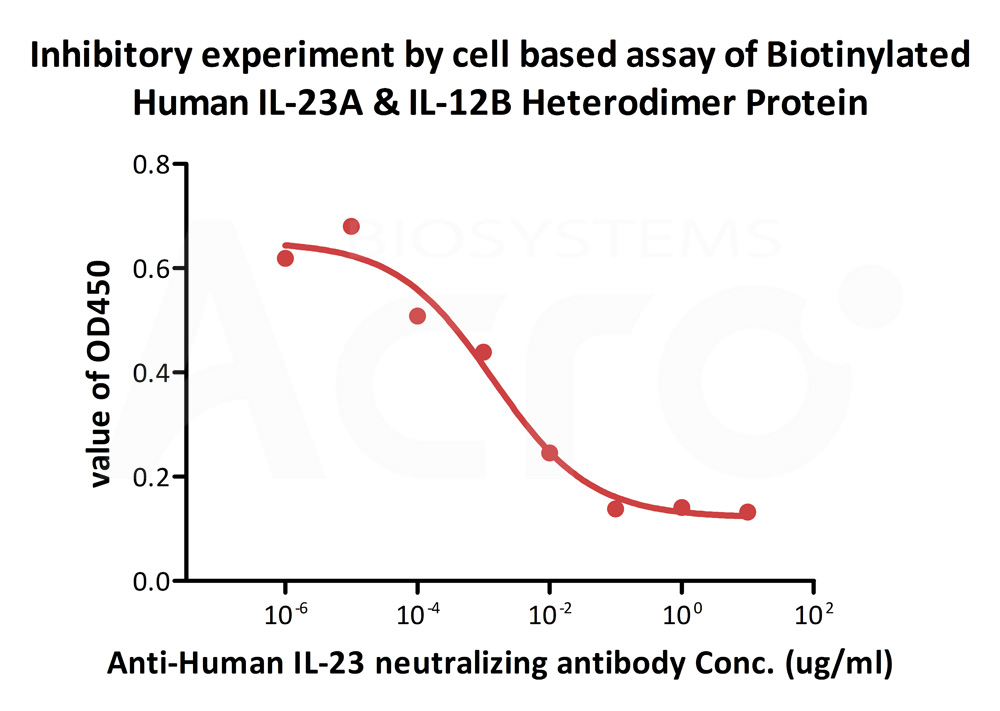

Cell based assay shows that the secretion of IL-17 induced by Biotinylated Human IL-23A&IL-12B Heterodimer Protein, His,Avitag&Tag Free (Cat. No. ILB-H82W6) is inhibited by increasing concentration of the anti-human IL-23 neutralizing antibody. The IC50 is between 0.25-1.40 ng/mL (Routinely tested).
Protocol
