Your Position: Home > All Other Proteins > CD3E & CD3D > CDD-M82W5

Biotinylated Mouse CD3 epsilon&CD3 delta Heterodimer Protein, His,Avitag™&Tag Free

  • Synonym
    CD3E & CD3D,CD3 delta & CD3 epsilon,CD3 delta / epsilon
  • Source
    MABSol® Biotinylated Mouse CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free (CDD-M82W5) is expressed from human HEK293 cells. It contains AA Asp 23 - Asp 108 (CD3E) & Phe 22 - Ala 105 (CD3D) (Accession # P22646-1(CD3E) & P04235-1(CD3D)). It is the biotinylated form of Mouse CD3 epsilon & CD3 delta Protein.
    Predicted N-terminus: Asp 23 (CD3E) & Phe 22 (CD3D)
  • Molecular Characterization
    Online(Asp 23 - Asp 108 (CD3E) & Phe 22 - Ala 105 (CD3D)) P22646-1 (CD3E) & P04235-1 (CD3D)

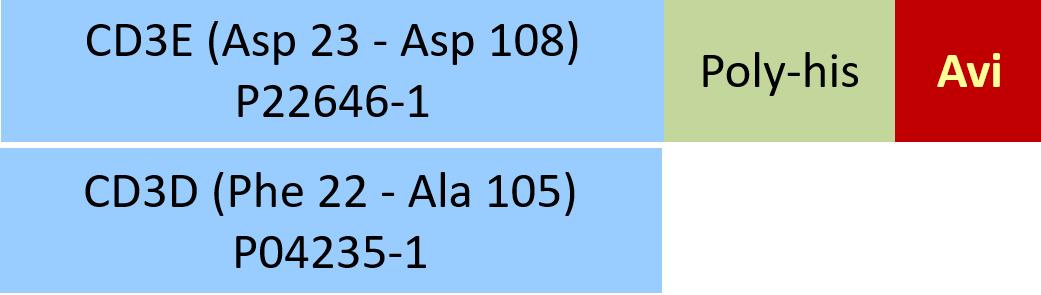

    Biotinylated Mouse CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free is produced by co-expression of CD3E and CD3D, has a calculated MW of 17.3 kDa (CD3E) and 13.3 kDa (CD3D). Subunit CD3E is fused with a polyhistidine tag and followed by an Avi tag (Avitag™) and subunit CD3D contains no tag at the C-terminus. The reducing (R) heterodimer protein migrates as 20-22 kDa due to glycosylation.

  • Biotinylation
    Biotinylation of this product is performed using Avitag™ technology. Briefly, the single lysine residue in the Avitag is enzymatically labeled with biotin.
  • Biotin:Protein Ratio
    The biotin to protein ratio is 0.5-1 as determined by the HABA assay.
  • Endotoxin
    Less than 1.0 EU per μg by the LAL method.
  • Purity

    >90% as determined by SDS-PAGE.

  • Formulation

    Lyophilized from 0.22 μm filtered solution in PBS, pH7.4. Normally trehalose is added as protectant before lyophilization.

    Contact us for customized product form or formulation.

  • Reconstitution

    Please see Certificate of Analysis for specific instructions.

    For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.

  • Storage

    For long term storage, the product should be stored at lyophilized state at -20°C or lower.

    Please avoid repeated freeze-thaw cycles.

    This product is stable after storage at:

    1. -20°C to -70°C for 12 months in lyophilized state;
    2. -70°C for 3 months under sterile conditions after reconstitution.
SDS-PAGE
Biotinylated Mouse CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free (Cat. No. CDD-M82W5) SDS-PAGE gel

Biotinylated Mouse CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free on SDS-PAGE under reducing (R) condition. The gel was stained overnight with Coomassie Blue. The purity of the protein is greater than 90%.

Bioactivity-ELISA
Biotinylated Mouse CD3E&CD3D Heterodimer Protein, His,Avitag&Tag FreeBiotinylated Mouse CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free (Cat. No. CDD-M82W5) ELISA bioactivity

Immobilized CD3e Monoclonal Antibody (145-2C11) at 1 μg/mL (100 μL/well) can bind Biotinylated Mouse CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free (Cat. No. CDD-M82W5) with a linear range of 5-156 ng/mL (QC tested).

  • Background
    T-cell surface glycoprotein CD3 delta & CD3 epsilon chain, also known as CD3D & CD3E or CD3D&CD3E respectively, are single-pass type I membrane proteins. CD3D, together with CD3- epsilon(CD3E) , CD3-gamma and CD3-zeta, and the T-cell receptor alpha/beta and gamma/delta heterodimers, forms the T cell receptor-CD3 complex. T cell receptor-CD3 complex plays an important role in coupling antigen recognition to several intracellular signal-transduction pathways.
  • References
    • Please contact us via TechSupport@acrobiosystems.com if you have any question on this product.
