Your Position: Home > Protein > NKG2A & CD94 > NC4-C82F7

Biotinylated Cynomolgus NKG2A&CD94 Protein, Fc,Avitag™ (MALS verified)

Order Now

  • Synonym
    NKG2A & CD94
  • Source
    Biotinylated Cynomolgus NKG2A&CD94, Fc,Avitag(NC4-C82F7) is expressed from human 293 cells (HEK293). It contains AA Ala 113 - Leu 233 (NKG2A) & Asp 57 - Ile 179 (CD94) (Accession # Q68VD2 (NKG2A) & Q68VD4 (CD94)).
    Predicted N-terminus: Ala 113
  • Molecular Characterization

    This protein carries a human IgG1 Fc tag at the C-terminus, followed by an Avi tag (Avitag™)

    The protein has a calculated MW of 56.8 kDa. The protein migrates as 65-68 kDa under reducing (R) condition (SDS-PAGE) due to glycosylation.

  • Labeling
    Biotinylation of this product is performed using Avitag™ technology. Briefly, the single lysine residue in the Avitag is enzymatically labeled with biotin.
  • Protein Ratio
    Passed as determined by the HABA assay / binding ELISA.
  • Endotoxin
    Less than 1.0 EU per μg by the LAL method.
  • Purity

    >95% as determined by SDS-PAGE.

    >90% as determined by SEC-MALS.

  • Formulation

    Lyophilized from 0.22 μm filtered solution in PBS, pH7.4 with trehalose as protectant.

    Contact us for customized product form or formulation.

  • Reconstitution

    Please see Certificate of Analysis for specific instructions.

    For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.

  • Storage

    For long term storage, the product should be stored at lyophilized state at -20°C or lower.

    Please avoid repeated freeze-thaw cycles.

    This product is stable after storage at:

    1. -20°C to -70°C for 12 months in lyophilized state;
    2. -70°C for 3 months under sterile conditions after reconstitution.
SDS-PAGE
NKG2A & CD94 SDS-PAGE

Biotinylated Cynomolgus NKG2A&CD94, Fc,Avitag on SDS-PAGE under reducing (R) condition. The gel was stained with Coomassie Blue. The purity of the protein is greater than 95%.

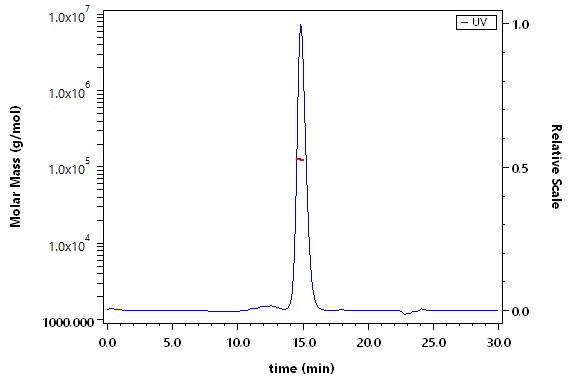

SEC-MALS
NKG2A & CD94 MALS images

The purity of Biotinylated Cynomolgus NKG2A&CD94, Fc,Avitag (Cat. No. NC4-C82F7) is more than 90% and the molecular weight of this protein is around 115-135 kDa verified by SEC-MALS.

Bioactivity-ELISA
 NKG2A & CD94 ELISA

Immobilized Anti-NKG2A Antibody, Human IgG1 at 1 μg/mL (100 μL/well) can bind Biotinylated Cynomolgus NKG2A&CD94, Fc,Avitag (Cat. No. NC4-C82F7) with a linear range of 0.1-16 ng/mL (QC tested).

 NKG2A & CD94 ELISA

Immobilized Biotinylated Cynomolgus NKG2A&CD94, Fc,Avitag (Cat. No. NC4-C82F7) at 1 μg/mL (100 μL/well) on streptavidin (Cat. No. STN-N5116) precoated (0.5 μg/well) plate can bind various dilution ratio of HLA-E*01:03 HLA-A leader3-11 Tetramer-VMAPRTLVL-PE (Routinely tested).

  • Background
    CD94 plays a role as a receptor for the recognition of MHC class I HLA-E molecules by NK cells and some cytotoxic T-cells. KLRD1 (CD94) is an antigen preferentially expressed on NK cells and is classified as a type II membrane protein because it has an external C terminus. NKG2A/CD159a is a transmembrane protein belonging to the CD94/NKG2 family of C-type lectin-like receptors that inhibits innate immune system activation. CD94 pairs with the NKG2 molecule as a heterodimer. The CD94/NKG2 complex, on the surface of natural killer cells interacts with Human Leukocyte Antigen (HLA)-E on target cells.
  • Clinical and Translational Updates
