Your Position: Home > Protein > TIM-3 > TI3-H82F8

Biotinylated Human TIM-3 / HAVCR2 Protein, Fc,Avitag™ (MALS verified)

Order Now

  • Synonym
    HAVCR2,TIM3,TIMD3,FLJ14428,KIM3
  • Source
    Biotinylated Human TIM-3 Protein, Fc,Avitag(TI3-H82F8) is expressed from human 293 cells (HEK293). It contains AA Ser 22 - Arg 200 (Accession # Q8TDQ0-1).
    Predicted N-terminus: Ser 22
  • Molecular Characterization
    TIM-3 Structure

    This protein carries a human IgG1 Fc tag at the C-terminus, followed by an Avi tag (Avitag™)

    The protein has a calculated MW of 48.0 kDa. The protein migrates as 65-70 kDa when calibrated against Star Ribbon Pre-stained Protein Marker under reducing (R) condition (SDS-PAGE) due to glycosylation.

  • Labeling
    Biotinylation of this product is performed using Avitag™ technology. Briefly, the single lysine residue in the Avitag is enzymatically labeled with biotin.
  • Protein Ratio
    Passed as determined by the HABA assay / binding ELISA.
  • Endotoxin
    Less than 1.0 EU per μg by the LAL method.
  • Purity

    >90% as determined by SDS-PAGE.

    >90% as determined by SEC-MALS.

  • Formulation

    Lyophilized from 0.22 μm filtered solution in 50 mM Tris, 100 mM Glycine, 25 mM Arginine, 150 mM NaCl, pH7.5 with trehalose as protectant.

    Contact us for customized product form or formulation.

  • Reconstitution

    Please see Certificate of Analysis for specific instructions.

    For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.

  • Storage

    For long term storage, the product should be stored at lyophilized state at -20°C or lower.

    Please avoid repeated freeze-thaw cycles.

    This product is stable after storage at:

    1. -20°C to -70°C for 12 months in lyophilized state;
    2. -70°C for 3 months under sterile conditions after reconstitution.
SDS-PAGE
TIM-3 SDS-PAGE

Biotinylated Human TIM-3 Protein, Fc,Avitag on SDS-PAGE under reducing (R) condition. The gel was stained with Coomassie Blue. The purity of the protein is greater than 90% (With Star Ribbon Pre-stained Protein Marker).

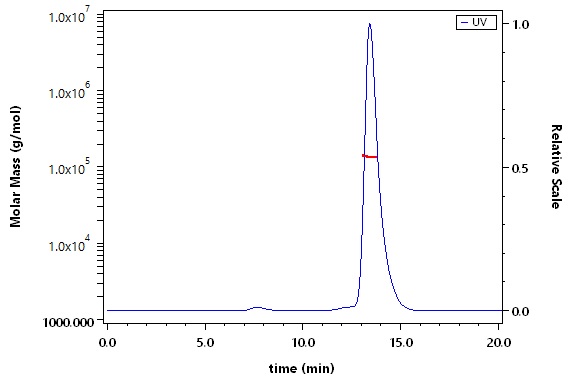

SEC-MALS
TIM-3 MALS images

The purity of Biotinylated Human TIM-3 Protein, Fc,Avitag (Cat. No. TI3-H82F8) is more than 90% and the molecular weight of this protein is around 125-145 kDa verified by SEC-MALS.

Bioactivity-ELISA
 TIM-3 ELISA

Immobilized Biotinylated Human TIM-3 Protein, Fc,Avitag (Cat. No. TI3-H82F8) at 1 μg/mL (100 μL/well) on streptavidin (Cat. No. STN-N5116) precoated (0.5 μg/well) plate can bind Monoclonal Anti-Human TIM-3 Antibody, Human IgG4 with a linear range of 0.1-2 ng/mL (QC tested).

  • Background
    Hepatitis A virus cellular receptor 2 is also known as HAVCR2, FLJ14428,  KIM3, TIM3, TIMD3, is a member of the TIM family of immune regulating molecules with one Ig-like V-type domain and a Ser/Thr-rich mucin stalk. CD4-positive T helper lymphocytes can be divided into types 1 (Th1) and 2 (Th2) on the basis of their cytokine secretion patterns. Th1 cells and their associated cytokines are involved in cell-mediated immunity to intracellular pathogens and delayed-type hypersensitivity reactions, whereas Th2 cells are involved in the control of extracellular helminthic infections and the promotion of atopic and allergic diseases. The 2 types of cells also cross-regulate the functions of the other. HAVCR2 is a Th1-specific cell surface protein that regulates macrophage activation and enhances the severity of experimental autoimmune encephalomyelitis in mice. HAVCR2 regulates macrophage activation. Inhibits T-helper type 1 lymphocyte (Th1)-mediated auto- and alloimmune responses and promotes immunological tolerance. May be also involved in T-cell homing. Dysregulation of the HAVCR2-galectin-9 pathway could underlie chronic autoimmune disease states in human, such as multiple sclerosis.
  • Clinical and Translational Updates
