Product Details
Synonyms
CD3E & CD3D, CD3 delta & CD3 epsilon
Source
Biotinylated Human CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free (CDD-H82W6) is expressed from human 293 cells (HEK293). It contains AA Asp 23 - Asp 126 (CD3E) & Phe 22 - Ala 105 (CD3D) (Accession # P07766-1 (CD3E) & P04234-1 (CD3D)).
Predicted N-terminus: Asp 23 (CD3E) & Phe 22 (CD3D)
Request for sequenceMolecular Characterization
Other Tags and Version Biotin & Other Labeled Version
Biotinylated Human CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free is produced by co-expression of CD3E and CD3D, has a calculated MW of 18.6 kDa (CD3E) and 13.4 kDa (CD3D). Subunit CD3E is fused with a polyhistidine tag and an Avi tag (Avitag™) at the C-terminus and subunit CD3D contains no tag. As a result of glycosylation, the heterodimer protein migrates as 20-28 kDa under reducing (R) condition, and 38-47 kDa when calibrated against Star Ribbon Pre-stained Protein Marker under non-reducing (NR) condition (SDS-PAGE).
Labeling
Biotinylation of this product is performed using Avitag™ technology. Briefly, the single lysine residue in the Avitag is enzymatically labeled with biotin.
Protein Ratio
Passed as determined by the HABA assay / binding ELISA.
Purity
>90% as determined by SDS-PAGE.
>95% as determined by SEC-MALS.
Formulation
Lyophilized from 0.22 μm filtered solution in PBS, pH7.4 with trehalose as protectant.
Contact us for customized product form or formulation.
Reconstitution
Please see Certificate of Analysis for specific instructions.
For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.
Storage
For long term storage, the product should be stored at lyophilized state at -20°C or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
- -20°C to -70°C for 24 months in lyophilized state;
- -70°C for 12 months under sterile conditions after reconstitution.
ACRO Quality Management System
Customers Also Viewed
Performance Data
SDS-PAGE
Biotinylated Human CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free on SDS-PAGE under reducing (R) and non-reducing (NR) conditions. The gel was stained with Coomassie Blue. The purity of the protein is greater than 90% (With Star Ribbon Pre-stained Protein Marker).
SEC-MALS
The purity of Biotinylated Human CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free (Cat. No. CDD-H82W6) is more than 95% and the molecular weight of this protein is around 35-55 kDa verified by SEC-MALS.
Report
Bioactivity-ELISA
Immobilized Biotinylated Human CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free (Cat. No. CDD-H82W6) at 1 μg/mL (100 μL/well) on Streptavidin (Cat. No. STN-N5116) precoated (0.5 μg/well) plate, can bind Monoclonal Anti-Human CD3 Antibody, Mouse IgG2a (Clone: OKT3) (Cat. No. CDE-M120a) with a linear range of 0.2-6 ng/mL (QC tested).
Protocol
Immobilized Biotinylated Human CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free (Cat. No. CDD-H82W6) at 1 μg/mL (100 μL/well) on Streptavidin (Cat. No. STN-N5116) precoated (0.5 μg/well) plate, can bind UCHT1 with a linear range of 0.1-3 ng/mL (Routinely tested).
Protocol
Quantitative Analysis of Bispecific T-cell Engager (CD3 X BCMA) in human serum.
Immobilized Human BCMA, His Tag (Cat. No. BCA-H522y) at 2 μg/mL, add increasing concentrations of Bispecific T cell Engager (CD3 X BCMA) in 10% human serum and then add Biotinylated Human CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free (Cat. No. CDD-H82W6) at 0.2 μg/mL. Detection was performed using HRP-conjugated streptavidin with sensitivity of 15 ng/mL (Routinely tested).

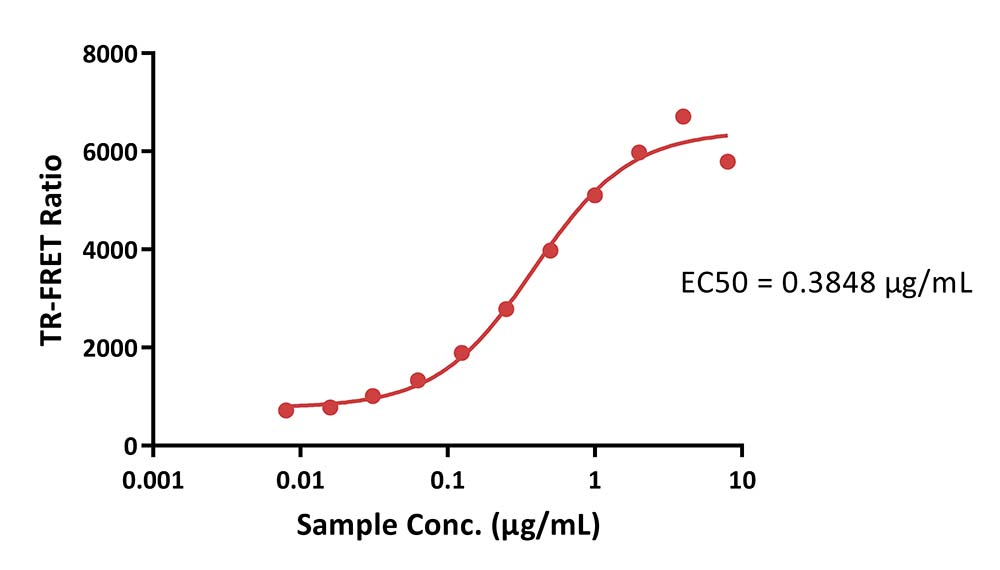

Bioactivity-TR-FRET
In this TR-FRET assay, Streptavidin Protein Europium chelate (for TR-FRET) (Cat. No. FRT-TD09) is used as the Donor and Monoclonal Anti-Human IgG Antibody FA-Labeled (for TR-FRET) (Cat. No. FRT-TA02) is used as the Acceptor. Biotinylated Human CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free (Cat. No. CDD-H82W6), at 0.3 ng/well, can bind to the Pasritamig with a linear detection range of 8-0.008 μg/mL (Routinely tested).
Bioactivity-SPR
Biotinylated Human CD3E&CD3D Heterodimer Protein, His,Avitag&Tag Free (Cat. No. CDD-H82W6) captured on Biotin CAP - Series S sensor Chip can bind Anti-Human CD3 Antibody, Mouse IgG2a (Clone: OKT3) with an affinity constant of 22.5 nM as determined in a SPR assay (Biacore T200) (Routinely tested).
Protocol
Customer Reviews Writing Reviews
G***k2024-06-21
LikesProduct was of very high quality and worked well for our needs. Served as an effective capture method for our MSD and ELISA assays. Coating with the protein allowed for accurate recovery of antibodies and was consistent between lots and batches ordered. Logistics speed was as expected, and the product arrived very quickly. This is one of many biotinylated capture methods we have used and all have functioned as expected and provided consistent results.
