Accelerating the development of novel antibody-drug conjugates through site-specific conjugation methods

Abstract

Antibody-drug conjugates (ADCs) are a new class of novel, highly targeted anti-cancer therapeutics. By grafting monoclonal antibodies to a cytotoxic payload, this vectorized chemotherapy is highly potent and have shown immense potential in combating many cancers. However, various factors during development can affect the efficacy of ADCs, including the selected target protein, monoclonal antibody quality, payload, linker stability, and most of all, the conjugation method. Commonly performed conjugation methods utilize random conjugation which often leads to poor stability and variability in efficacy. A site-specific conjugation method precisely controls the conjugation site, producing a homogenous mixture, which is an especially promising path to improving ADC design. In this study, we utilize our AGLink site-specific conjugation kit to perform site-specific enzymatic modification of IgG Fc glycans and evaluate ADC conjugation homogeneity and cytotoxicity.

Introduction

Antibody–drug conjugates (ADC) typically consist of a monoclonal antibody (mAbs) attached to a cytotoxic payload via a chemical linker. ADC development requires careful consideration of each of its key components and development strategy since each element has the potential to affect the final therapeutic efficacy and safety.¹

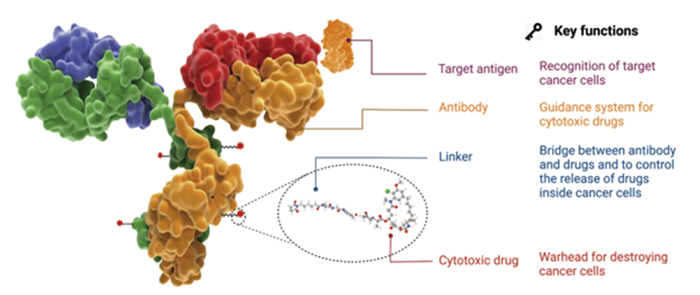

Figure 1. The structure, components and functions and characteristic of an ADC drug. ¹

One important characteristic of an ADC drug is the drug-to-antibody ratio (DAR). This ratio elucidates the number of drug molecules bound onto a single antibody. Based on the conjugation strategy, the number of drug molecules that are bound to a single antibody varies. Low-drug loading reduces the overall potency, whereas high-drug loading can have higher cytotoxic effects but increased side-effects and altered pharmacokinetics (PK). As such, appropriate selection of conjugation strategy can affect the homogeneity of ADCs and resulting effectiveness.^2-3

Conventional conjugation techniques perform non-specific conjugation on pre-existing lysine or cysteine residues via appropriate coupling reactions. This results in a high variability of DAR, from 0 to 8, as well as various linker positions, producing a set of heterogenous ADCs.^1-3

To increase the efficacy of ADCs, site-specific conjugation technologies, including engineered cysteine residues, unnatural amino acids, or enzymatic conjugation through glycosyltransferases, have been applied to obtain more homogeneous ADCs. ³ This has proven to be clinically effective by improving ADC pharmacokinetics and therapeutic index. Furthermore, the increased control over conjugation site reduces the overall the hydrophobicity of the linker–payload, preventing unintended payload release in blood.³

AGLink ADC site-specific conjugation kits were used to perform site-specific conjugation,. The AGLink technology utilizes an enzymatic modification method (one-pot process) to reduce antibody N-glycans by fucosylation and enable site-specific and controllable conjugation.⁴ After conjugation, the resulting ADCs were evaluated for ADC homogeneity, immunoreactivity, and cytotoxicity.

▶ Methods and Materials

AGLink ADC site-specific conjugation kits (ACROBiosystems, Glyco-therapy Biotechnology; Cat. No. ADC-P005;  Cat. No. ADC-P009) were used and based on the conjugation platform YTConjus™ (Glyco-therapy Biotechnology Co.,Ltd.).

Conjugation Method

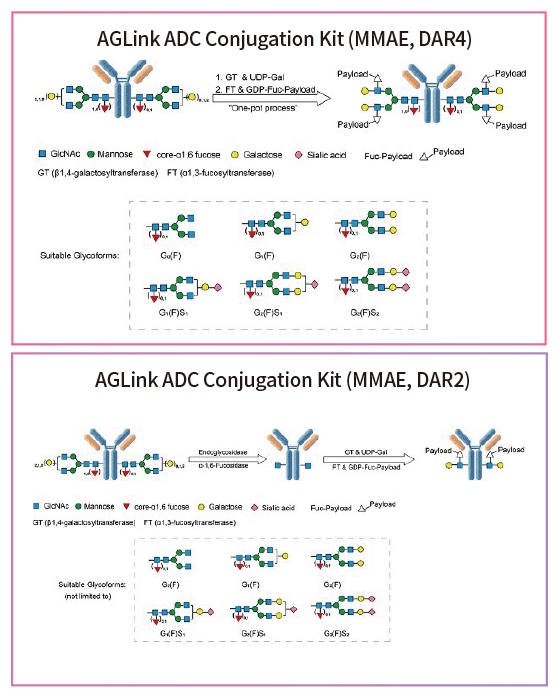

Figure 2. Conjugation mechanisms using the AGLink ADC Conjugation Kit. Two different conjugation methods are proposed above with either a DAR of 2 or 4. Suitable glycoforms that are compatible for enzymatic modification are listed below.

Result

To characterize the efficacy of AGLink, Trastuzumab and MMAE were used. N-glycans were identified to be at the asparagine 297 (N297) position of the CH2 domain on each heavy chain Fc fragment. The N-glycans were reduced to form reactive sites linked with payloads through glycosylation.1 The resulting glycosylation is predominantly composed of varied amounts of N-acetylglucosamine, fucose, galactose, mannose and N-acetylneuraminic acid (sialic acid) residues, which are assembled in different complex-type biantennary structures.4 The resulting ADCs (Trastuzumab-MMAE) with different DARs (2 or 4) were developed and characterized through varying studies.

▶ High homogeneity conjugated antibodies

Figure 3. HIC-HPLC analysis of MMAE ADCs (DAR 4 & DAR 2). A shift in retention time was observed for higher DAR ADCs result associated with to the hydrophobic payload (MMAE). After conjugation using AGLink ADC kit, it can be observed that the resulting ADCs are highly homogenous for both DAR2 and DAR4 conjugation mechanisms.

▶ Preserved bioactivity after conjugation

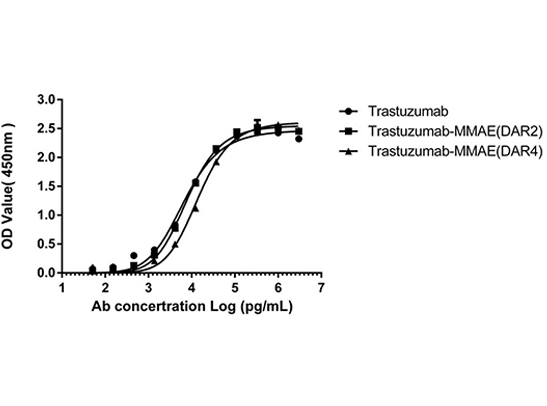

Figure 4. ELISA analysis was performed to test the antigen-binding capacity of both DAR2 and DAR4 ADCs. HER2 antigen binding to Trastuzumab-MMAE (DAR2/4) was unaffected after the AGLink conjugation, preserving antibody bioactivity.

▶ Consistency in the site-specific labeling process mitigates aggregation

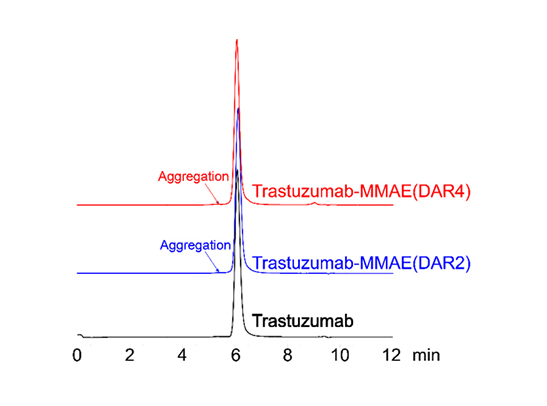

Figure 5. SEC-HPLC was performed to evaluate ADC aggregation. No observable peaks were seen in the resulting chromatogram, with less than 5% of antibody aggregation.

▶ In vitro plasma stability test for AGLink ADCs

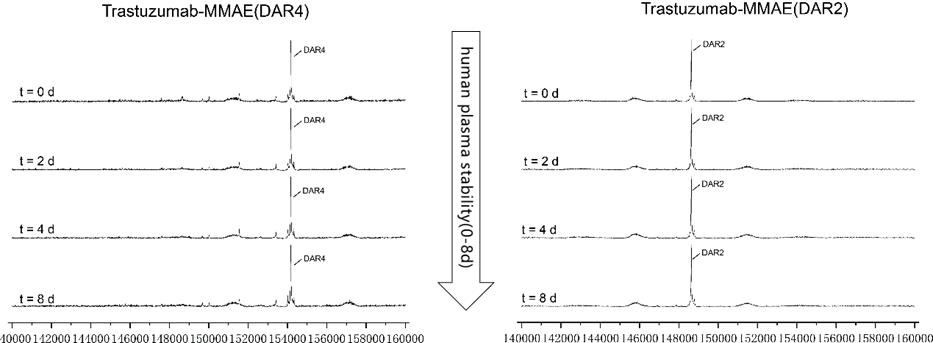

Figure 6. MMAE ADCs (DAR2/4) were spiked into human plasma and tested over 8 days and evaluated through LC-MS. Both types of ADCs were stable in vitro throughout the experiment.

▶ In vitro cytotoxic activity assay

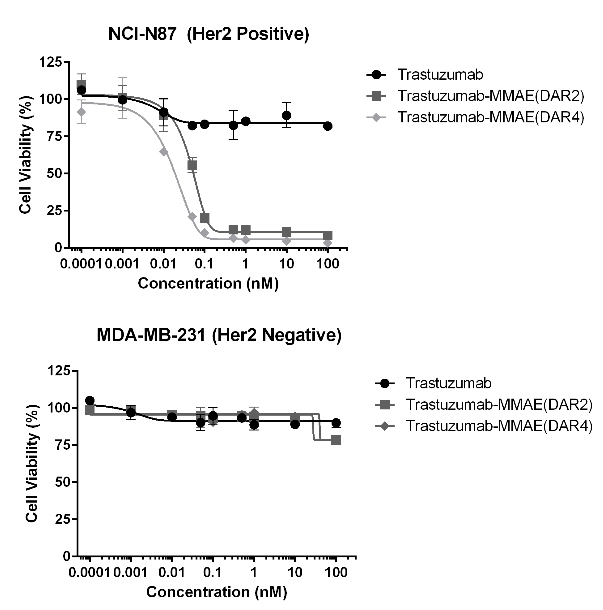

Figure 7. MMAE ADCs (DAR 2/4) were evaluated on its cytotoxicity to HER2 positive and negative cell lines. The ADCs developed in this study were proven to induce cell death in HER2 positive cell lines, while preserving cell viability in HER2 negative cells.

Conclusion

Site-specific modifications are beginning to be used more frequently to meet the rapidly evolving applications of ADCs. Of these modification methods, we see that glycoengineering has been demonstrated as a useful approach for site-specific antibody conjugation methods. The AGLink site-specific conjugation kit utilizes glycoengineering by performing an enzymatic modification method of IgG Fc glycans to perform conjugation. AGLink does not require any prior engineering of the amino acid sequence, and results in stable antibody conjugates with minimal variation between batches. As a result, the AGLink technology used in the conjugation kit offers a unique site-specific conjugation method with potential applications for preclinical development of MMAE-ADCs.

References:

1. Fu Zhiwen,Li Shijun,Han Sifei et al. Antibody drug conjugate: the "biological missile" for targeted cancer therapy.[J] .Signal Transduct Target Ther, 2022, 7: 93.

2. Theocharopoulos C, Lialios PP, Samarkos M, Gogas H, Ziogas DC. Antibody-Drug Conjugates: Functional Principles and Applications in Oncology and Beyond. Vaccines (Basel). 2021 Sep 29;9(10):1111.

3.Marei Hany E,Cenciarelli Carlo,Hasan Anwarul,Potential of antibody-drug conjugates (ADCs) for cancer therapy.[J] .Cancer Cell Int, 2022, 22: 255.

4. Yang Y, Song Z, Tian T, et al. Reducing the Complexity of Fc Glycan Enables the Construction of Antibody Conjugates with Unexpected High Efficiency and Payload Capacity via Glycoengineering[J]. 2022.
